35HG50HG75HG100HG

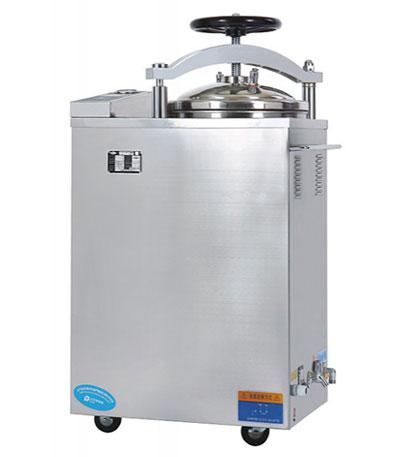

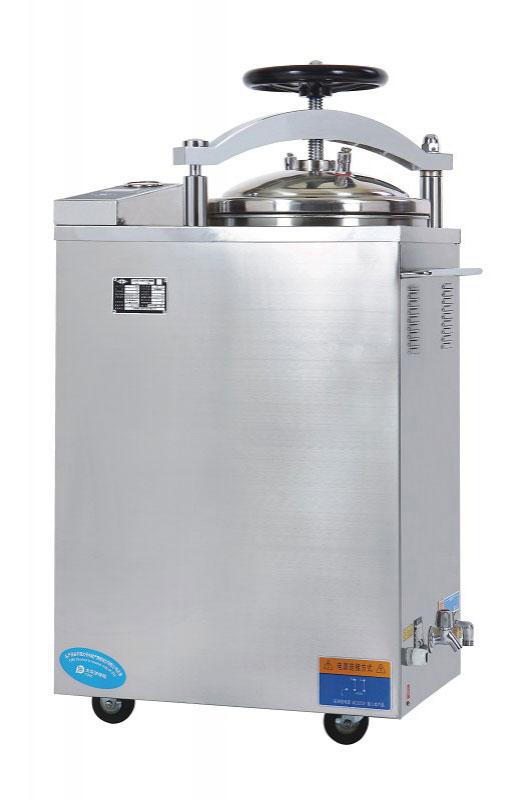

The HG series vertical steam sterilizer is equipped with a touch key panel that features adjustable operation methods and memory functions. The bottom of the machine is equipped with a wheel, making the equipment easy to install and use. The water source is unadulterated water, or distilled water, thus guaranteeing the safety and cleanliness of the equipment, as well as extending its service life.

The HG series vertical sterilizer is a piece of micro sterilization equipment that is safe, reliable and automatically controlled. It is equipped with a built-in heater, sterilization cylinder, container cylinder, safety valve, steam release valve, temperature and pressure indicator, alarm for finished sterilization, and heating power automatic cut off.

This sterilizer features a reliable sterilization effect, convenient operation, and a safe, energy saving and durable performance. It also features an excellent durability and quality, making it ideal for sterilizing surgical instruments, dressing, container, culture medium and so on in health care, scientific research and other departments.

• Automatic program operation control: it is convenient to use, and the LED displays the dialog box during the entire sterilization process, and requires no supervision.
• Steam temperature control program: the steam temperature is controlled within 103～134℃, making it suitable for a variety of object requirements.
• The water temperature is set at 50～101℃, so objects of various types can be boiled at a suitable working temperature.
• The drying time is set between 0 and 99 minutes. Different objects can be dried in different amounts of time.
• With a timing function, the automatic countdown begins when the sterilization temperature reaches the selected value. The sterilizer will automatically release pressure and steam, as well as cut off the heating power after the sterilization. It then alarms to indicate that the program operation is finished.
• When it enters the drying program, the automatic countdown begins. The sterilizer will automatically cut off the heating power when the sterilization process is finished. It will then alarm to indicate that the program operation is finished.
• This machine has an automatic releasing device for cold air in the sterilizing chamber in order to ensure the sterilization effect.
• After sterilization, it automatically discharge steam into the water tank. The indoor environment remains clean.
• The electric heating element is an immersion electrical heating tube, with a high thermal efficiency. It has an AC220V voltage and a 1KW power.
• The entire machine is made using a high quality stainless steel, which is corrosion-resistant, easy to maintain, wear resistant, durable and aesthetically pleasing.

• The sterilizer features a self-lock function, which means that when the internal pressure exceeds 0.24MPa, the door cannot be opened.
• Overheat protector: if water is not added or is cut off during the operation, the power is automatically cut off.
• When water breakage or other failures occur, the pressure release valve is automatically opened to release steam.
• Equipped with overload and electricity leakage protectors, the power will be automatically cut off when the circuit ether leaks or goes into over-voltage.
• The sterilizer is equipped with an open type safety valve that remains closed under normal operation processes. It will automatically open when the pressure exceeds an allowable operating range, allowing excessive steam pressure to escape. When the pressure returns to a normal value, the valve will close, thus ensuring safe operations.
