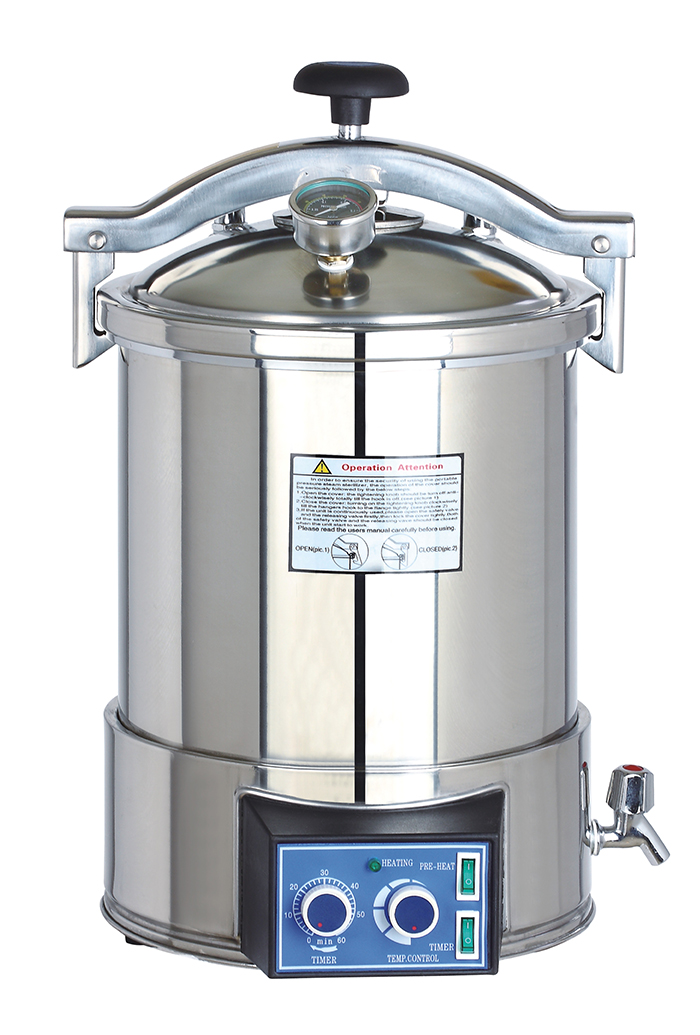

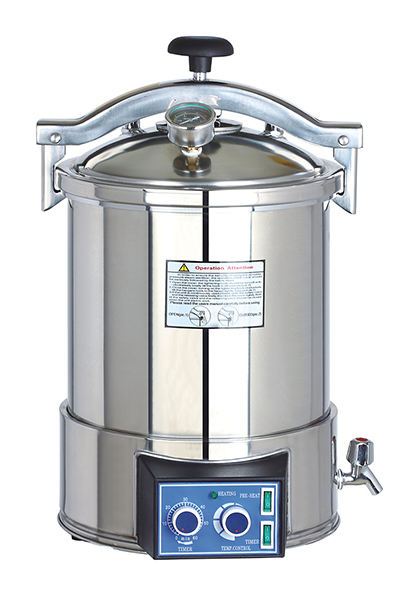

The HDJ series portable autoclave features an immersion electrical heating tube and protection device against water cut off and overheating. When the pressure is too high, the temperature is too high, or the water is cut off, the autoclave will automatically sound an alarm and shut off.
The HDJ series portable autoclave uses pressure saturated steam to rapidly and efficiently sterilize objects. It is useful in hospitals, health centers, factories, scientific research centers, and other departments for thorough sterilization. This autoclave can sterilize medical instruments, dressings, glass ware, solutions, and culture mediums. It can also help supply clean drinking water for consumption and other applications.
Sterilizing chamber volume | 0.018M3 (φ280×260mm) |
Rated working pressure | 0.14-0.16MPa |
Rated working temperature | 126℃ |
Adjustment of temperature | 105~134℃ |
Maximum safety pressure | 0.165MPa |
Adjustment of pressure | 0.05-0.14Mpa |
Timer | 0-60min. |
Power supply/Power | AC220V 50Hz/2KW |
Low water level protection | |
Transport volume | 42×42×63cm |
Gross weight/Net weight | 13kg/12kg |
Sterilizing chamber volume | 0.024M3 (φ280×390mm) |
Rated working pressure | 0.14-0.16MPa |
Rated working temperature | 126℃ |
Adjustment of temperature | 105~126℃ |
Maximum safety pressure | 0.165MPa |
Adjustment of pressure | 0.05-0.14Mpa |
Timer | 0-60min. |
Power supply/Power | AC220V 50Hz/2KW |
Low water level protection | |
Transport volume | 42×42×75cm |
Gross weight/Net weight | 15kg/14kg |
