The HD28 series vertical steam sterilizer is equipped with an overheating protection system. The sterilizer can automatically cut off the power supply, when water is not added, is low, or cut off. Under water breakage and other failures, the pressure releasing valve is automatically opened to discharge the steam.
The HD28 series vertical steam sterilizer has a digital automatic control program. It also has a built-in electric heater, safety valve, steam releasing valve, temperature and pressure indicator, alarm for finished sterilization, heating power automatic cut off, etc. This sterilizer has the advantages of reliable sterilizing effect, convenient operation, safe use, electricity-saving, low cost and high quality performance. It is ideal equipment in health care, scientific research and other departments for sterilizing surgical instruments, dressings, containers, culture mediums, etc.
Features of HD28 series vertical steam sterilizer
- Automatic program operated control: it is easy to operate. The LCD displays the dialog box of the whole sterilizing process without supervision.
- Steam temperature control program: the steam temperature is controlled within 105～134℃. Different types of objects can be sterilized at a suitable working temperature.
- The water temperature is set at 50～101℃, so objects of various types can be boiled at a suitable working temperature.
- Timer: the automatic countdown begins when the sterilizing temperature reaches the selected value. And the sterilizer will automatically cut off the power supply, release pressure and steam after the sterilization. Then it alarms to indicate that the program operation is finished.
- This sterilizer has automatic releasing device for cold air in the sterilizing chamber to ensure sterilization effect.
- Adopting immersion electrical heating tube as the electric heating element, it has high thermal efficiency with a power voltage of AC220V. And it should be well grounded when operating.
- Automatic protection devices against over-temperature and over-pressure: When the temperature is too high, the sterilizer can automatically cut off the heating power. When the pressure is too high, it opens the safety valve for automatic pressure release protection.
- Open type safety valve: It is closed under normal sterilization. When the pressure of the sterilizer exceeds the maximum allowable operating range, it automatically opens to release the excessive pressure steam. And it is automatically closed when the pressure inside the sterilizer returns to normal value. The safety during the operation is guaranteed.
- It is impossible to open the door when the internal pressure exceeds 0.027Mpa, and it has the interlocking function.
- Overload and electricity leakage protectors: the power will be automatically cut off when the circuit occurs electricity leakage or over-voltage.
- The whole machine adopts high quality stainless steel to have advantages of corrosion-resistant, easy maintenance, long life span and so on.

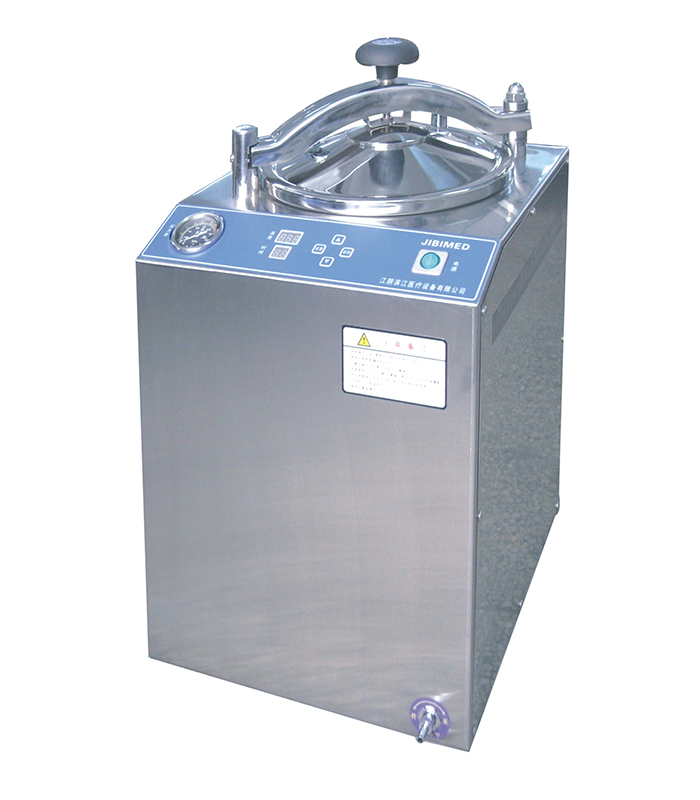

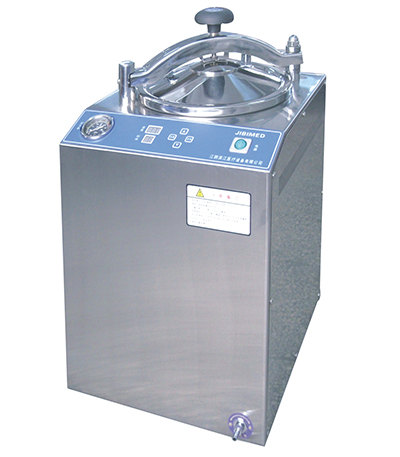

HD28 Vertical Steam Sterilizer
|Model ||LS-28HD |
|Sterilizing chamber volume ||28L |
|Maximum working pressure ||0.22MPa |
|Maximum operating temperature ||134℃ |
|Temperature uniformity of sterilization chamber ||≤±1℃ |
|Adjustment of timing ||0～99min. |
|Adjustment of temperature/pressure ||105～134℃ |
|Power/Voltage ||2000W/AC220V 50Hz |
|Product features ||Automatic cold air discharge, sterilization, timing, steam discharge and alarm |
|Safety performance ||Water cut off overheat protection, current overload automatic cut off, automatic overpressure release |
|Overall size (L×W×H) ||400×370×700 (mm) |
|Transport volume ||440×420×750 (mm) |
|Weight ||Gross weight 26Kg / Net weight 23Kg |
