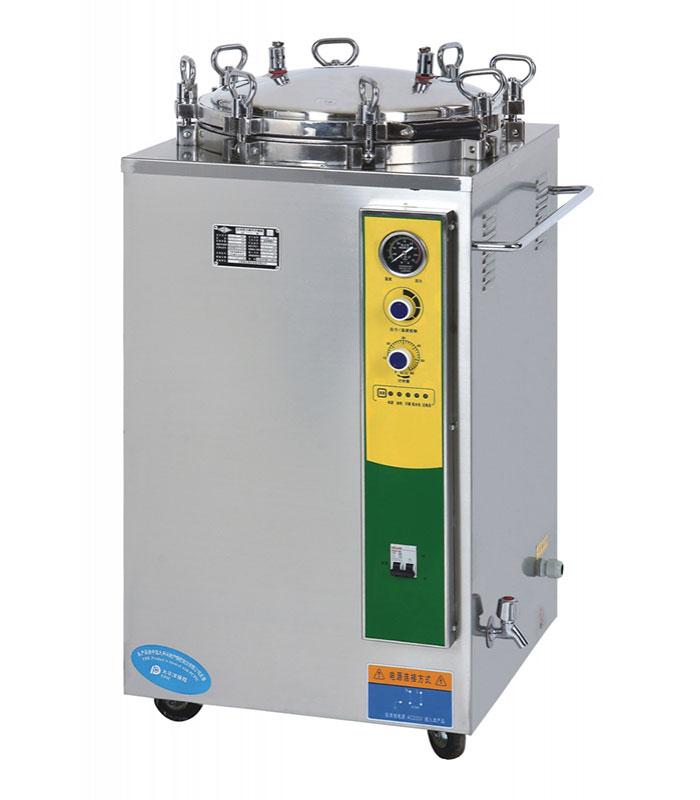

Description
The LJ series vertical steam sterilizer is equipped with an open type safety valve that remains closed under normal operation processes. It will automatically open when the pressure exceeds an allowable operating range, allowing excessive steam pressure to escape. When the pressure returns to a normal value, the valve will close, thus ensuring safe operations.
Application
The LJ series vertical sterilizer is equipped with a built-in heater, sterilization timer, temperature and pressure automatic control regulator, safety valve, steam release valve, temperature and pressure indicator, alarm for finished sterilization, and heating power automatic cut off.
This sterilizer features a reliable sterilization effect. It is easy and safe to use, and its performance saves energy. It is durable, and features an exceptional quality at a low price. It is ideal for use in health care, scientific research and other industries for sterilizing surgical instruments, dressings, containers, culture mediums and more.
Features of LJ series vertical steam sterilizer
- Automatic sterilization process program control: it is easy to use and requires no supervision
- Steam temperature control program: the steam temperature is controlled within 105～134℃. Different objects can be sterilized at different required temperatures
- With a timing function, the automatic countdown begins when the sterilization temperature reaches the selected value. The sterilizer will automatically release pressure and steam, as well as cut off the heating power after the sterilization. It then alarms to indicate that the program operation is finished.
- The electric heating element is an immersion electrical heating tube, with a high thermal efficiency. It has an AC220V voltage and a 1KW power.
LJ series vertical sterilizer has automatic protection devices against over-temperature and over-pressure
- Equipped with overload and electricity leakage protectors, the power will be automatically cut off when the circuit ether leaks or goes into over-voltage.
- The entire machine is made using a high quality stainless steel that is corrosion resistant, easy to maintain and features a long service life.
35LJ Vertical Steam Sterilizer
| Model | LS-35LJ |
| Sterilizing chamber volume | 35L (φ318×450mm) |
| Rated working pressure | 0.22MPa |
| Maximum operating temperature | 134℃ |
| Temperature uniformity of sterilization chamber | ≤±1℃ |
| Adjustment of timing | 0～60min. |
| Adjustment of temperature/pressure | 105～134℃/0.04～0.22MPa |
| Power/Voltage | 2500W/AC220V 50Hz |
| Safety performance | Water cut off overheat protection, current overload automatic cut off, automatic overpressure release |
| Overall size (L×W×H) | 48×46×85 (cm) |
| Transport volume | 57×55×101 (cm) |
| Weight | Gross weight 56Kg / Net weight 42Kg |
50LJ Vertical Steam Sterilizer
| Model | LS-50LJ |
| Sterilizing chamber volume | 50L |
| Rated working pressure | 0.22MPa |
| Rated working temperature | 134℃ |
| Temperature uniformity of sterilization chamber | ≤±1℃ |
| Adjustment of timing | 0～60min. |
| Adjustment of temperature/pressure | 105～134℃/0.04～0.22MPa |
| Power/Voltage | 3000W/AC220V 50Hz |
| Safety performance | Water cut off overheat protection, current overload automatic cut off, automatic overpressure release |
| Overall size (L×W×H) | 52×52×98 (cm) |
| Transport volume | 59×59×111 (cm) |
| Weight | Gross weight 68Kg / Net weight 50Kg |
75LJ Vertical Steam Sterilizer
| Model | LS-75LJ |
| Sterilizing chamber volume | 75L |
| Maximum working pressure | 0.22MPa |
| Maximum operating temperature | 134℃ |
| Temperature uniformity of sterilization chamber | ≤±1℃ |
| Adjustment of timing | 0～60min. |
| Adjustment of temperature/pressure | 115～134℃/0.07～0.22MPa |
| Power/Voltage | 4500W/AC220V 50Hz |
| Safety performance | Water cut off overheat protection, current overload automatic cut off, automatic overpressure release |
| Overall size (L×W×H) | 56×56×98 (cm) |
| Transport volume | 65×63×115 (cm) |
| Weight | Gross weight 90Kg, Net weight 70Kg |
100LJ Vertical Steam Sterilizer
| Model | LS-100LJ |
| Sterilizing chamber volume | 100L |
| Maximum working pressure | 0.22MPa |
| Maximum operating temperature | 134℃ |
| Temperature uniformity of sterilization chamber | ≤±1℃ |
| Adjustment of timing | 0～60min. |
| Adjustment of temperature/pressure | 105～134℃ / 0.04～0.22MPa |
| Power/Voltage | 4500W/AC220V 50Hz |
| Safety performance | Water cut off overheat protection, current overload automatic cut off, automatic overpressure release |
| Overall size (L×W×H) | 59×59×108 (cm) |
| Transport volume | 68×65×122 (cm) |
| Weight | Gross weight 105Kg, Net weight 85Kg |
120LJ Vertical Steam Sterilizer
| Model | LS-120LJ |
| Sterilizing chamber volume | 120L |
| Maximum working pressure | 0.22MPa |
| Maximum operating temperature | 134℃ |
| Temperature uniformity of sterilization chamber | ≤±1℃ |
| Adjustment of timing | 0～60min. |
| Adjustment of temperature/pressure | 105～134℃ / 0.04～0.22-MPa |
| Power/Voltage | 6000W/AC220V 50Hz |
| Safety performance | Water cut off overheat protection, current overload automatic cut off, automatic overpressure release |
| Overall size (L×W×H) | 60×64×114 (cm) |
| Transport volume | 73×73×127 (cm) |
| Weight | Gross weight 125Kg, Net weight 100Kg |
LS-150LJ Vertical Steam Sterilizer
| Model | LS-150LJ |
| Sterilizing chamber volume | 150L |
| Maximum working pressure | 0.22MPa |
| Maximum operating temperature | 134℃ |
| Temperature uniformity of sterilization chamber | ≤±1℃ |
| Adjustment of timing | 0～60min. |
| Adjustment of temperature/pressure | 105～134℃ / 0.04～0.22MPa |
| Power/Voltage | 6000W/AC220V 50Hz |
| Safety performance | Water cut off overheat protection, current overload automatic cut off, automatic overpressure release |
| Overall size (L×W×H) | 67×69×113 (cm) |
| Transport volume | 76×76×128 (cm) |
| Weight | Gross weight 130Kg, Net weight 105Kg |
